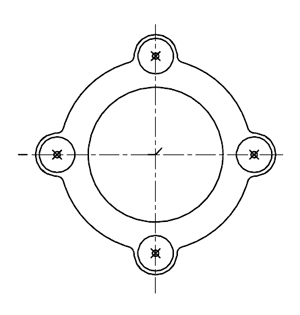

| DIMENSIONS(mm) |
| DN |
OD range |
L |
bolts |
| 80 |
88-103 |
164 |
4-(1/2)" |
| 100 |
108-128 |
166 |
4-(1/2)" |
| 150 |
158-182 |
170 |
4-(1/2)" |
| 200 |
218-235 |
174 |
4-(1/2)" |
| 250 |
272-289 |
176 |
6-(1/2)" |
| 300 |
322-350 |
172 |
6-(1/2)" |
|
| MATERIAL SPECIFICATION |
| Item |
Description |
Materal |
| 1 |
Body |
Ductile iron |
| 2 |
Gasket |
Epdm |
| 3 |
Gland |
Ductile iron |
| 4 |
Bolts&nuts |
Dteel with zinc plated |
|
|
USE: Connect UPVC, DI, CI, AC, steel pipe |
